PRODUCT IMAGES

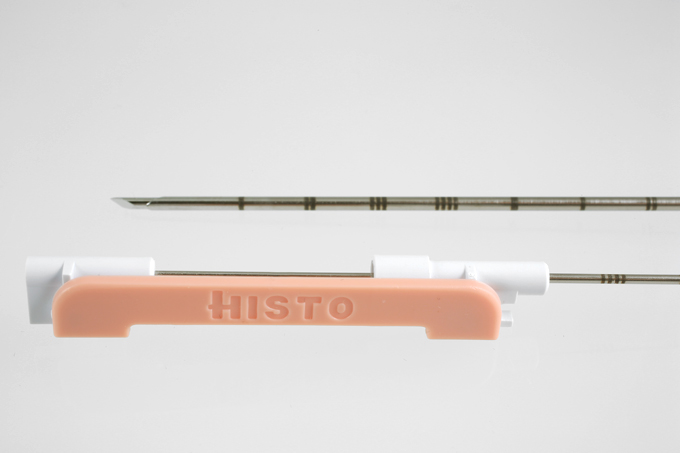

» Exclusive “spacer” system to introduce needle in the lession before insertion into the biopsy instrument (gun).
» ”Spacer” will detach after placing the needle into the instrument (gun).
» Hubs addapted to allow syringe use.
“Certified company ISO 13485:2016 / ISO 9001:2015”.
Biopsy needles for automatic biopsy guns |

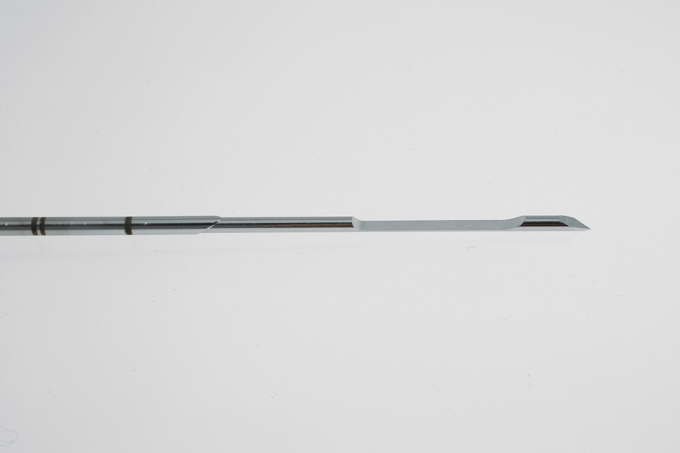

Core biopsy needle for soft tissue specimen retrieval. TRU - CUT type compatible with Dana 2.2 MG and various instruments commercially available.
Colored coded hubs to identify needle gauge.
Centimeter depth markings for greater accuracy.
| CODE | COLOR | GUAGE | NEEDLE LENGHT (cm) |
| 551210 551213 |
 |
12 12 |
10 cm 13 cm |
| 551410 551415 551420 |
 |
14 14 14 |
10 cm 15 cm 20 cm |
| 551610 551615 551620 551625 |
 |
16 16 16 16 |
10 cm 15 cm 20 cm 25 cm |
| 551810 551815 551820 551825 551830 |
 |
18 18 18 18 18 |
10 cm 15 cm 20 cm 25 cm 30 cm |
* Disposable product, for single patient use only.
* See instructions contained in package needle for correct use.
BACK TO PRODUCTS
Biopsy needles for automatic biopsy guns |
Core biopsy needle for soft tissue specimen retrieval. TRU - CUT type compatible with Dana 2.2 MG and various instruments commercially available.
Colored coded hubs to identify needle gauge.
Centimeter depth markings for greater accuracy.
| CODE | COLOR | GUAGE | NEEDLE LENGHT (cm) |
| 551210 551213 |
|
12 12 |
10 cm 13 cm |
| 551410 551415 551420 |
|
14 14 14 |
10 cm 15 cm 20 cm |
| 551610 551615 551620 551625 |
|
16 16 16 16 |
10 cm 15 cm 20 cm 25 cm |
| 551810 551815 551820 551825 551830 |
|
18 18 18 18 18 |
10 cm 15 cm 20 cm 25 cm 30 cm |
PRODUCT IMAGES
» Exclusive “spacer” system to introduce needle in the lession before insertion into the biopsy instrument (gun).
» ”Spacer” will detach after placing the needle into the instrument (gun).
» Hubs addapted to allow syringe use.
* Disposable product, for single patient use only.
* See instructions contained in package needle for correct use.
BACK TO PRODUCTS
“Certified company ISO 13485:2016 / ISO 9001:2015”.
